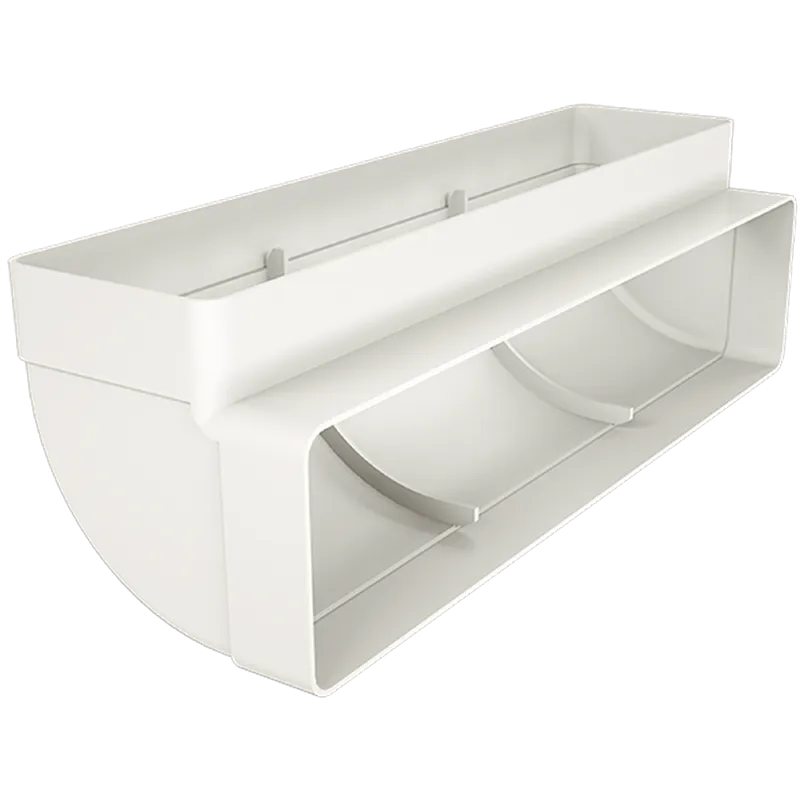

300×60 90 Degree Vertical Bend

A: A 90 degree vertical bend creates a sharper direction change than a 45 degree bend, which results in slightly higher air resistance and pressure loss. However, the 300×60 90 Degree Vertical Bend is engineered with smooth internal curves to minimise turbulence. It is best suited for installations where space is limited and a direct vertical change is needed. For longer duct runs or where maximum airflow efficiency is critical, consider using two 45 degree bends instead.

A: The 300×60 90 Degree Vertical Bend is manufactured from high-quality, lightweight PVC material. PVC flat channel ducting components are durable, resistant to moisture and corrosion, and provide a smooth internal surface for efficient airflow. This makes them ideal for residential and light commercial HVAC ventilation systems where longevity and low maintenance are important.

A: Yes, the 300×60 90 Degree Vertical Bend is ideal for rangehood and kitchen exhaust ducting applications. It allows flat channel ductwork to transition vertically through a ceiling cavity or wall space. When used in rangehood installations, this bend helps route the duct from the rangehood adapter upward through the roof or into the ceiling space, providing an efficient and low-profile ducting solution.

A: Yes, the 300×60 90 Degree Vertical Bend is designed to connect seamlessly with standard 300×60mm flat channel ductwork. It features matching dimensions at both ends for a secure push-fit connection. For best results, use a 300×60 duct connector or sealant tape at the joint to ensure an airtight seal and prevent air leakage in your HVAC ducting system.

A: The 300×60 90 Degree Vertical Bend is designed to redirect flat channel ductwork vertically at a sharp 90-degree angle. It is commonly used in HVAC installations where the duct needs to transition from a horizontal run to a vertical rise or drop, such as going through floors or ceilings. This bend maintains a smooth internal profile to reduce air turbulence and pressure loss in your ventilation system.

A: The 300×60 90 Degree Vertical Bend changes the direction of 300×60mm flat channel ductwork by 90 degrees on the vertical plane. It is commonly used when ducting needs to drop from a horizontal ceiling run directly down through a wall cavity, or when transitioning from wall-mounted to ceiling-mounted runs. This fitting enables compact duct routing in tight spaces.
